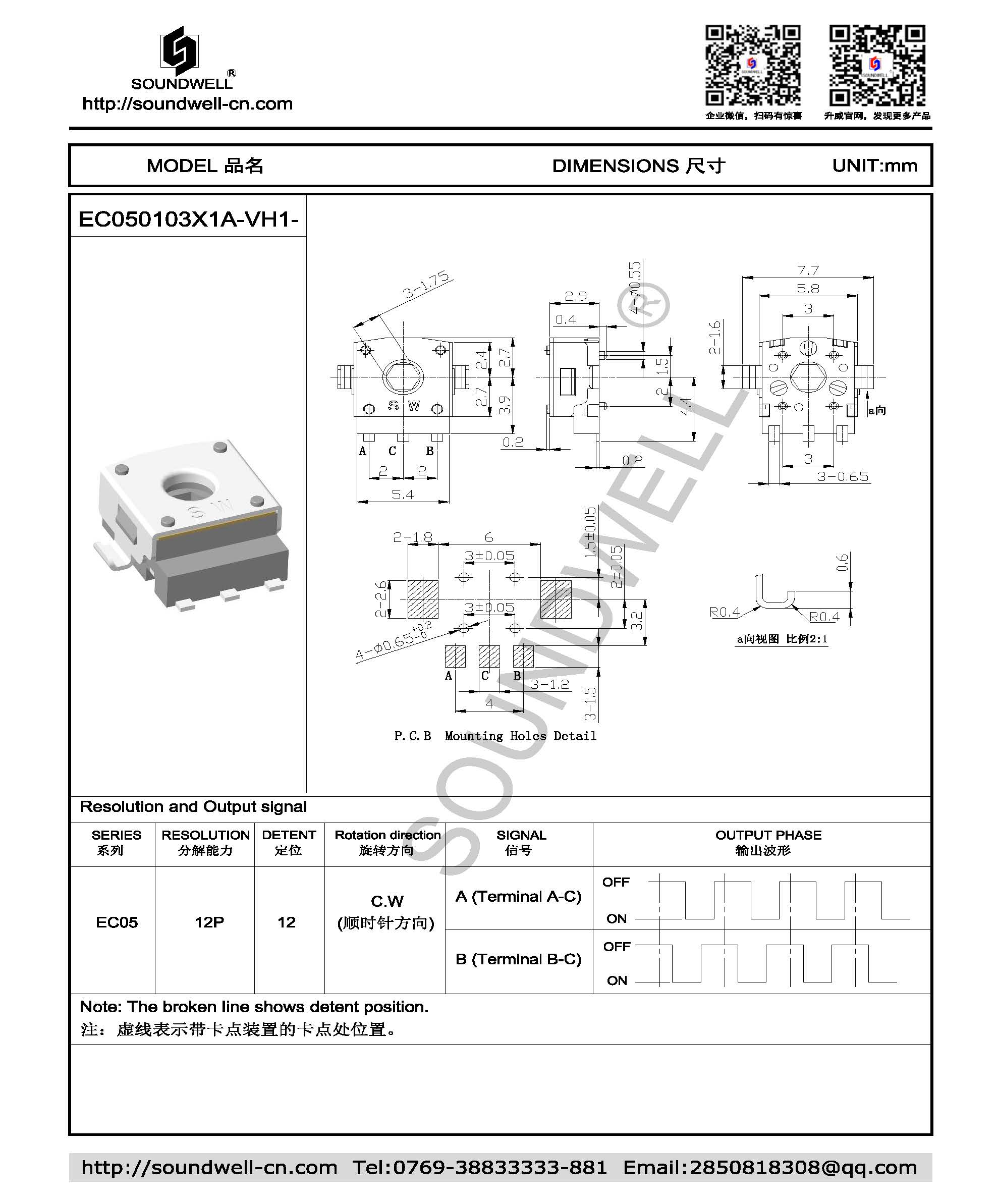

Encoder model： |
EC050103 series |
|
| Applications： |
Smart watch, earphone and other related electronic devices. |
|
| Product Features: |
Small size with 6.6mm*5.8mm*2.9mm; Available for SMT reflow soldering. |
|
| Functions： |
Mainly used to control volume and function switching. |
|
| Main Specifications: |
Rated voltage: DC 5V Number of detent: 18 Pulses: 9 Rotational torque: 5-30 gf.cm. Working temperature: -40℃~85℃; Rotational life: 30,000 cycles Min; |
ONE、MECHANICAL CHARACTERISTIC
1. Rotational torque: 100~300gf.cm
2. Number of detent: 30 (Step angle: 12±3°)
TWO、ELECTRICAL CHARACTERISTIC
1. Resolution: 12 pulses/360°
2. Phase difference: ≥3ms
3. Rated voltage: DC 5V
4. Insulation resistance: 50M? 60s±5s at DC 50V
5. Dielectric voltage: AC 50 V 60s±5s
THREE、ENDURANCE CHARACTERISTIC
1. Rotational life ：30,000 cycles Min
Note: In this catalog, if some parameters or drawings are different from the "Approval sheet", it's subject to the "Approval sheet".
