| Encoder model: | RJ1803(FPC) |
| name: |
RJ18 FPC Joystick Potentiometer |
| Main specifications: |
Rated power: 0.0125W |
| Features: |
FPC output for easy assembly; Low profile with a total height of only 6.2mm (including lever) ; Lever can be customized; 360°movement on 2D flat surface with returning to offset positions; |
| Application areas: |
Handhold gimbals, gaming controllers and other related electronic devices. It is mainly used for direction control and mode switching. |
ONE、MECHANICAL CHARACTERISTIC
1. Operating Travel: 4mm
2. Operating Torque: 110±50 gf
TWO、ELECTRICAL CHARACTERISTIC
1. Total resistance: 10K±20%
2. Rated power: 0.0125W
3. Rated voltage: DC 5V；
4. Voltage divider error: 44%-56%
THREE、ENDURANCE CHARACTERISTIC
1. Rotational life: 100,000 cycles Min

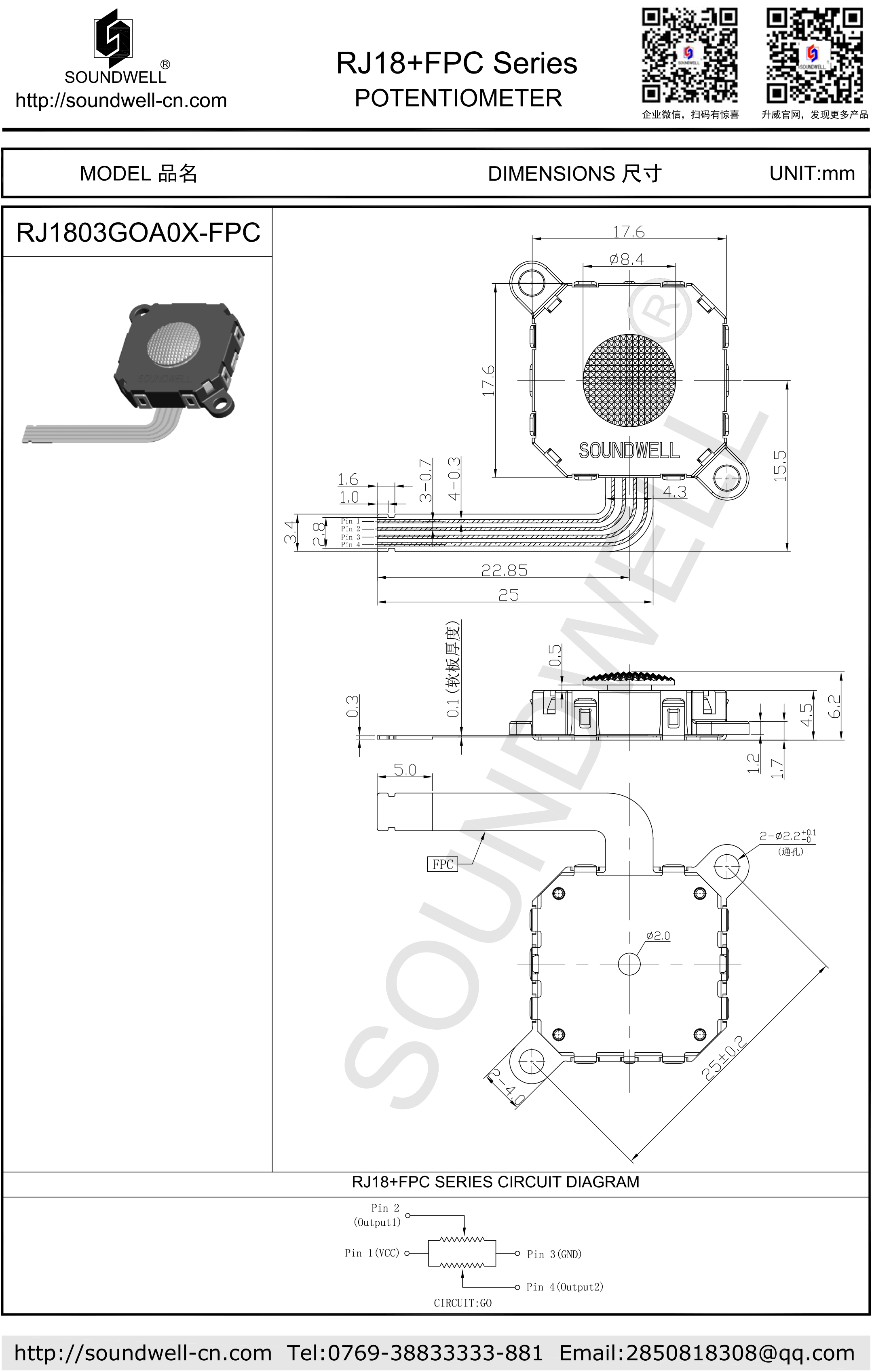

Note: In this catalog, if some parameters or drawings are different from the "Approval
sheet", it's subject to the "Approval sheet".
